Overview

Where it rides
City street, effortless errands, challenging hills

What it’s built for
Work, fitness, getting around, free your knees

Highlights

Ergonomic Step-Thru Frame/Shimano 10-speed

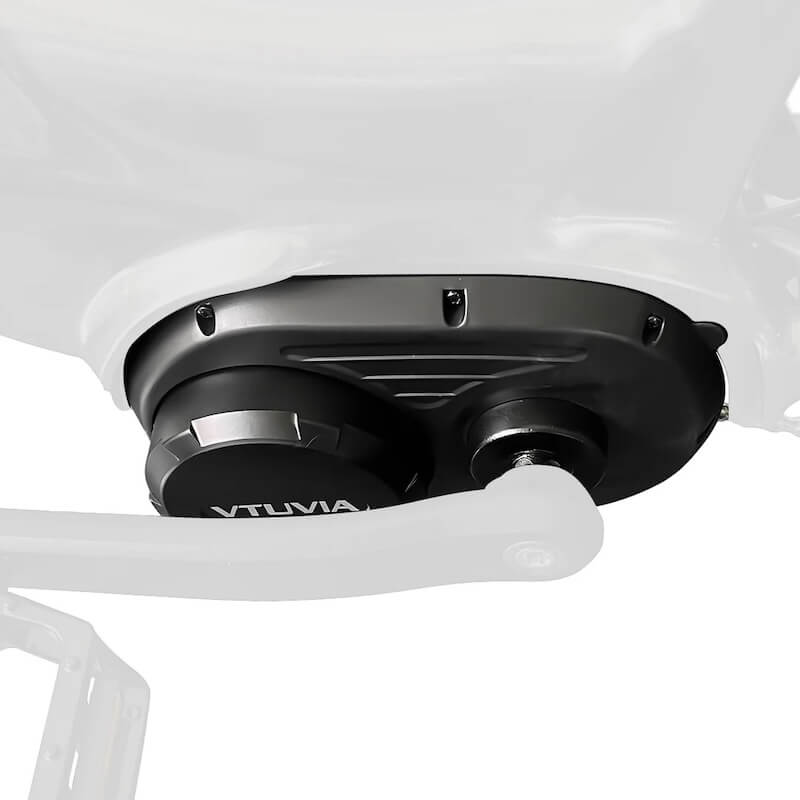

500W Mid-Drive/Torque/Max 175Nm

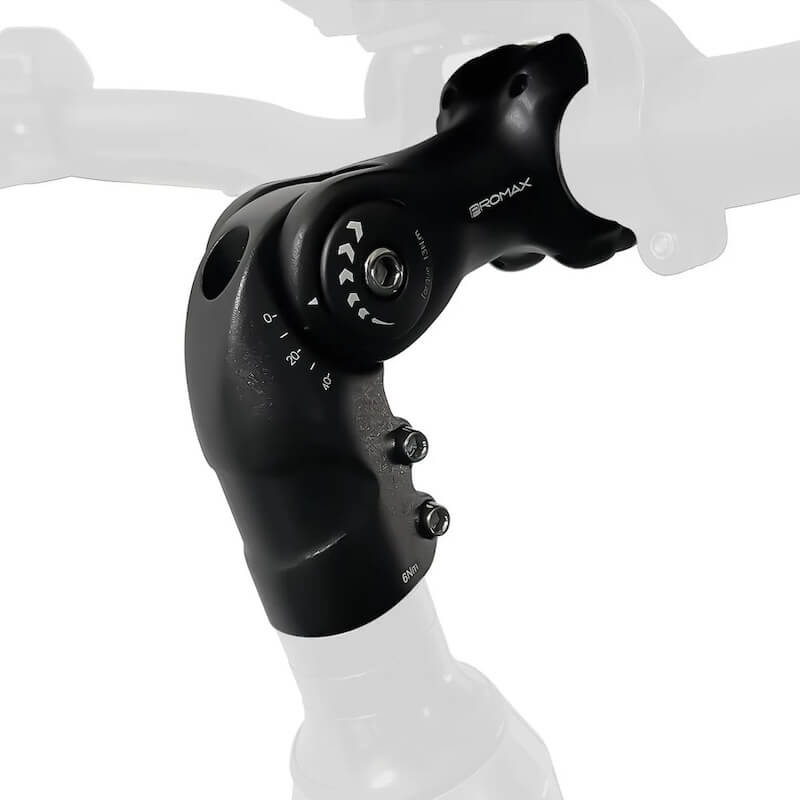

Adjustable Steam
LG 48V 15Ah Battery/Max 80 Miles

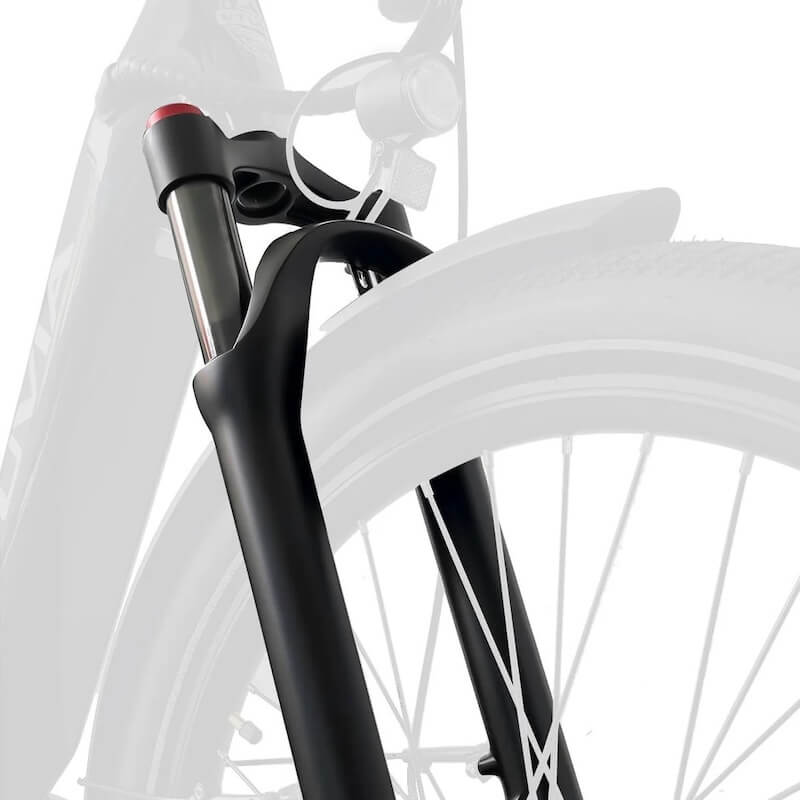

Hydraulic Front Fork/Travel 100mm

Frame Design

Step-thru

Max Range

80 Miles

Mid-Drive

500W

48V 15Ah LG

UL2849

ALL TERRIAN

Total Comfort

Easy to hop on and off. It can handle all terrain with no struggle. The soft front suspension and Shimano’s 10-speed gearing bring you smooth and stable riding, whether cruising effortlessly or tackling steep hills. Ensures the perfect balance of power, precision, and comfort—no more, no less.

Features

Specs

E-system & Drivetrain

Motor
Mid-Drive 500W

Peak power
818W

Sensor
Cadence Sensor & Torque Sensor

Charging time
5-6 hours

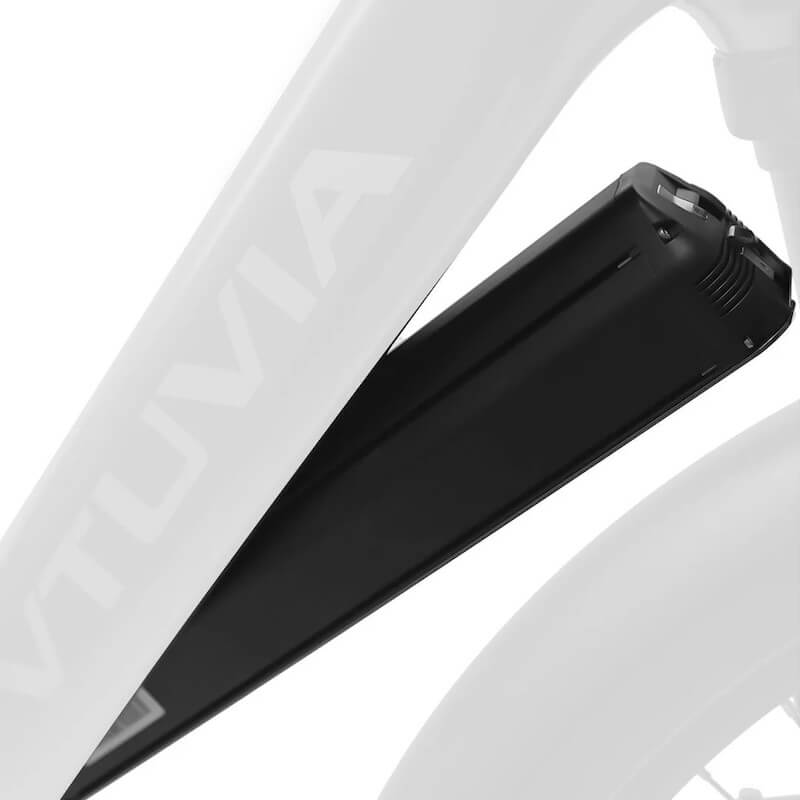

Battery
48V 15Ah LG(720Wh)

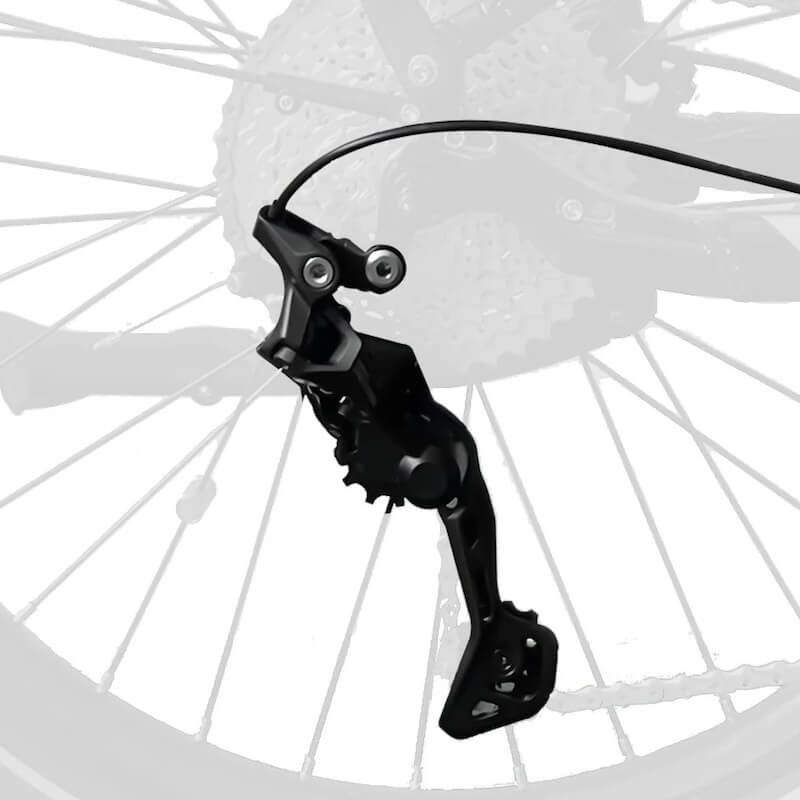

Gear
Shimano 10-Speed

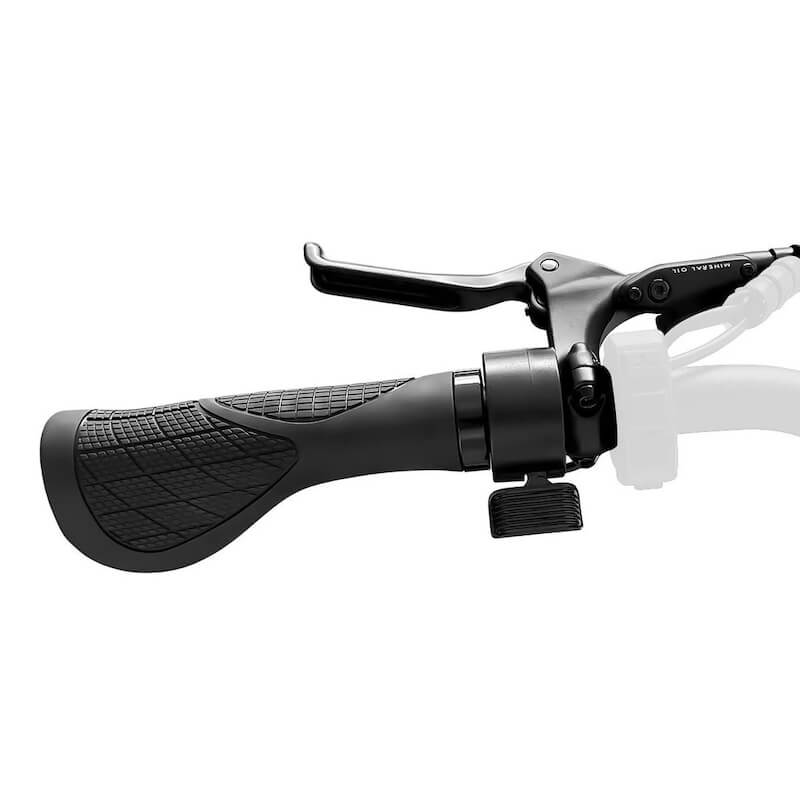

Throttle
High sensitivity throttle

Pedal assist
3 Modes x 5 Levels

Frameset

Frame style
Step-Through

Frame
Aluminum alloy

Foldable
No

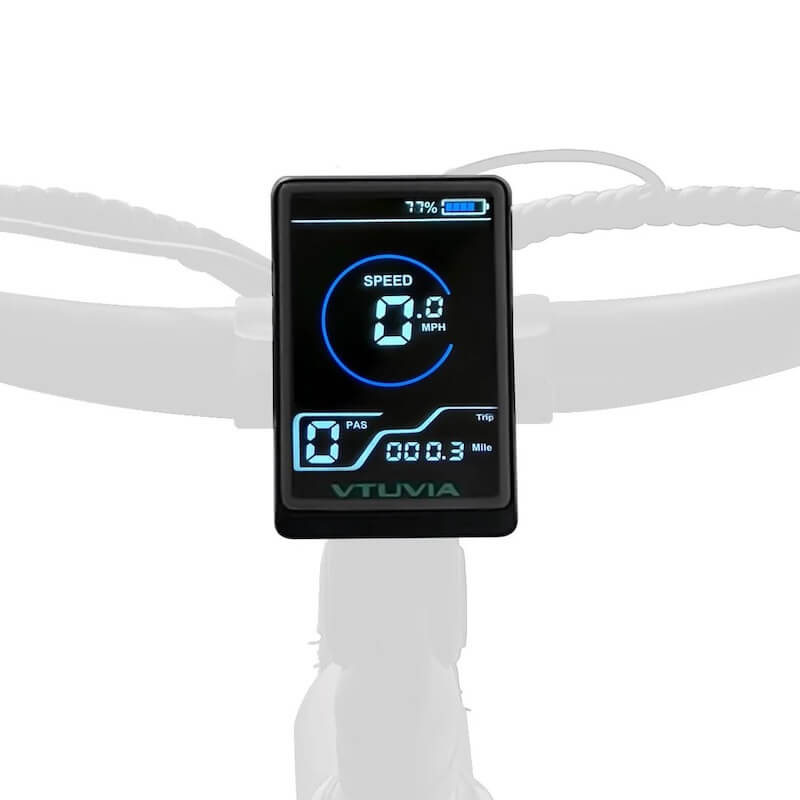

Display
LCD

Suspension
Front

Brake
Hydraulic

Tire
26″*2.4″

Fenders
Included

Rear rack
Included

Lights
LED Headlight & Brake Light

Weight
66 Ibs

Total capacity
330 Ibs

Components

Stud
AIuminium AIIoy

Controller
48V 18A lnteIIigent brushIess

Steam
Promax adjustable high-strength aIuminium aIIoy

Handlebar
Aluminum Alloy 31.8mm, 720mm

Throttle
High sensitivity throttle

Crank
Performance Classic GTS 58t

Kickstand
Adjustable High-strength AIuminium AIIoy

Brake lever
Disconnect the motor power supply when the brake

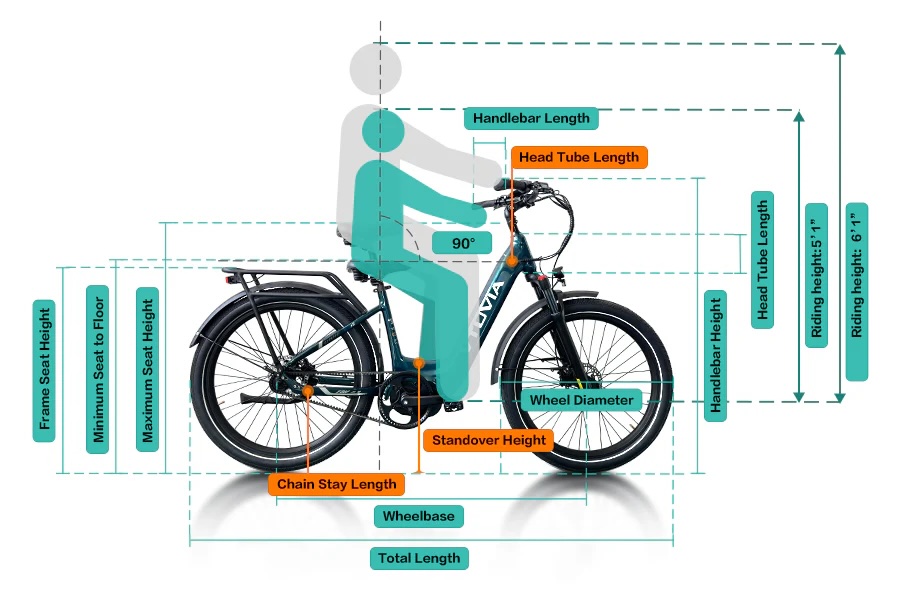

Geometry

Total length
73.7″

Handlebar height
43.3″

Wheelbase
46.4″

Maximum seat height
39.4″

Chain stay length
18.5″

Standover height
16.9″

Top tube length
23.3″

Head tube length
6.3″

Minimum seat to floor
31.5″

Rider height
5’1″-6’1″

*These factors, based on laboratory tests, show that the range of an e-bike is influenced by the rider’s weight, pedal assist level, throttle use, terrain, speed, weather, and towing weight. These elements affect battery consumption and, ultimately, the e-bike’s range.

*Please note that, based on component availability and other factors, specifications are subject to change without notice.

*The VTUVIA CMB PRO comes out of the box as a Class II e-bike, equipped with pedal assist and thrott. It is UL2849 certified for safety, and due to UL certification requirements, the default maximum speed is set to 20 MPH, which can be adjusted according to user preferences. The bike is built to the IP67-rated standard, making it suitable for riding through creeks, mud, and snow. However, please avoid prolonged or intentional immersion in water. Additionally, the bike is not designed to withstand high-pressure sprays, so refrain from using pressure washers or sprayers for cleaning.
